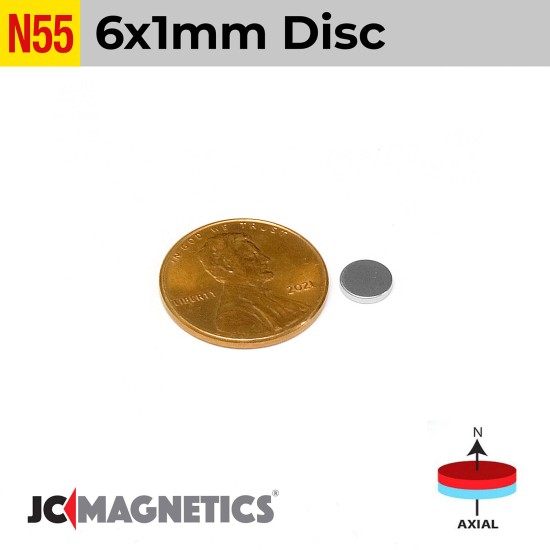

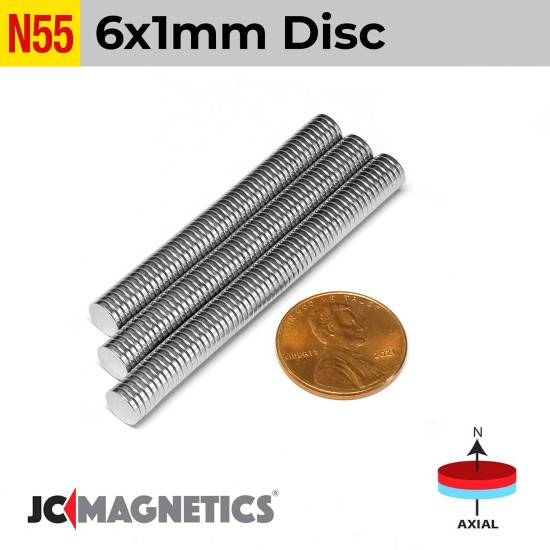

6mm x 1mm 15/64in x 1/32in N55 Thin Discs Rare Earth Neodymium Magnet 6x1mm

Key Specifications

  • Pull Force: 0.87 lbs
  • Dimensions: 6mm diameter × 1mm thickness (15/64" × 1/32")
  • Grade: N55 - Premium neodymium magnet grade
  • Material: Neodymium (NdFeB) - The world's strongest permanent magnet

Product Description

These ultra-thin N55 neodymium disc magnets deliver exceptional magnetic strength in a compact low-profile design. Made from premium rare earth alloy of neodymium, iron, and boron, each magnet provides 0.87 lb pull force while maintaining an extremely thin 1mm thickness.

Each disc features protective nickel-copper-nickel coating to prevent corrosion and ensure long-term durability. The larger 6mm diameter combined with minimal thickness makes these magnets ideal for applications requiring both strong magnetic force and space efficiency, while the brittle ceramic-like construction requires gentle handling to prevent damage.

Important Safety Information

⚠️ WARNING: Handle with extreme caution - serious safety risks for children.

  • CHOKING HAZARD: Keep away from children under 12 years old
  • SWALLOWING DANGER: Can cause life-threatening internal injuries if swallowed
  • Maintain minimum 6-inch distance from pacemakers and medical devices
  • Prevent magnets from colliding forcefully to avoid dangerous shattering
  • Keep away from electronic devices, credit cards, and magnetic storage media
  • Use tweezers or magnetic pick-up tools for safe handling
  • Store individually in non-magnetic containers or separated by thin spacers

Common Uses

Perfect for applications requiring strong, ultra-thin magnetic solutions including:

  • Electronics assembly and circuit board mounting
  • Model building and scale modeling projects
  • Jewelry making and wearable accessory design
  • Scientific research and laboratory procedures
  • Magnetic closures for thin cases and electronic covers
  • DIY repairs in confined spaces and tight areas
  • Educational demonstrations and STEM activities
  • Magnetic separation of fine metallic components
Magnet Specifications
Dimensions6mm diameter x 1mm thickness, (0.236in x 0.039in) 15/64in x 1/32in
Tolerances ±0.05mm x ±0.05mm
Pull Force (approx.)

Magnet to a Steel Plate: 0.87 LB

Between 2 Steel Plates: 3.99 LB

Magnet to Magnet: 0.87 LB

MaterialNdFeB, Grade N55
ShapeRound Disc
Plating/CoatingNi-Cu-Ni (Nickel)
Magnetization DirectionAxial (Poles on Flat Ends)
Surface Gauss (approx.)2,427 Gauss
Max Operating Tempetature176ºF (80ºC)
Brmax14,900 Gauss
Weight

0.25 grams

BHmax55 MGOe
