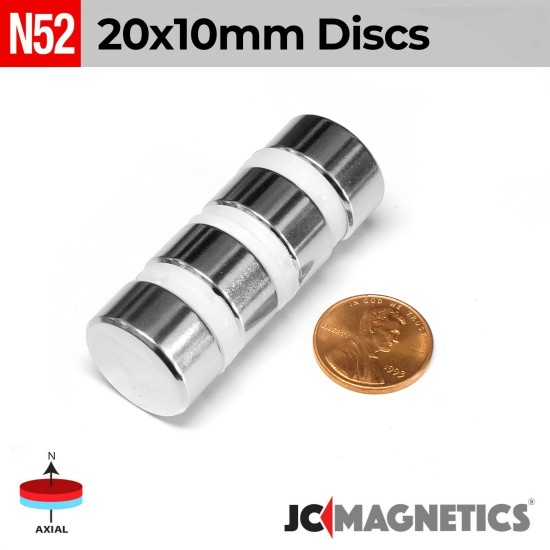

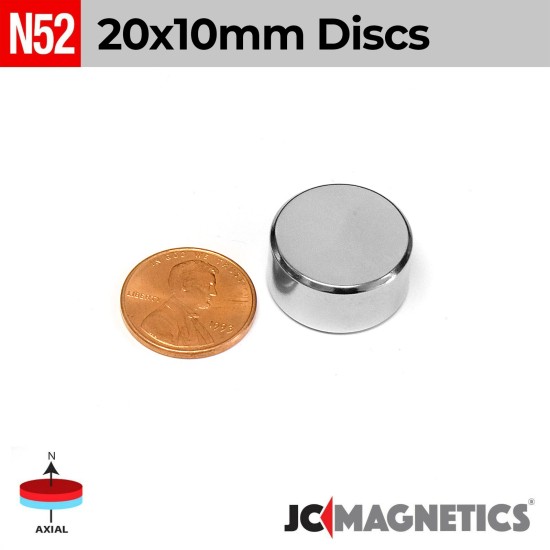

20mm x 10mm 25/32in x 25/64in N52 Discs Rare Earth Neodymium Magnet 20x10mm

20mm x 10mm (25/32in x 25/64in)
Neodymium Disc Magnet – N52 Grade (Pull Force approx. 26.03 lbs).

Key Features:

• Dimensions Metric: 20mm diameter × 10mm thickness
• Dimensions Imperial: 25/32 inch diameter × 25/64 inch thickness
• Magnet to steel pull force: approx. 26.03 lbs
• Magnet Grade: N52
• Coating: Triple-Layer Nickel-Copper-Nickel (Ni-Cu-Ni) - Total: 15 – 25 µm
• Material Composition: Neodymium (Nd), Iron (Fe), and Boron (B) – Nd₂Fe₁₄B formula
• Shape: Disc
• Magnetization Direction: Axial (Through Thickness)
• Surface Magnetic Field (B₀): ~5,137 Gauss
• Max Operating Temperature: 80°C (176°F)
• Curie Temperature: 310°C (590°F)
• Residual Induction (Br): 14.3 – 14.8 kGs (1.43 – 1.48 T)
• Max Energy Product ((BH)max): 52.0 MGOe (414 kJ/m³)
• Dimensional Tolerance: ±0.05 mm (±0.002 in)
• Estimated Weight: 23.56 grams (0.831 oz)
• SKU / Part Number: JC-D2010-N52

Material Description:

Neodymium magnets are made from powerful rare earth metals. These 25/64" thick discs are ultra-low profile, making them perfect for applications where a strong pull is needed without the bulk. They are the strongest commercially available permanent magnets for their size.

Note: Due to their sintered crystalline structure, these magnets are brittle. Handle with care to prevent them from snapping together and shattering. Always slide magnets apart rather than lifting.

Warnings and Safety Information:

• Keep away from children. Small magnets pose a choking hazard and can cause serious internal injury if swallowed.
• Avoid contact with pacemakers. Magnetic fields can interfere with medical device operation.
• Handle with caution. Magnets may snap together quickly; keep fingers clear and avoid impact.
• Not a toy. Designed for industrial, professional, and hobbyist use only.
• Pinch and Crush Hazard. Powerful magnetic attraction can cause severe pinching or crushing of skin and fingers if allowed to jump toward ferrous metals or other magnets.
• Thermal Sensitivity. Do not heat above 80°C (176°F) to prevent permanent loss of magnetic strength.
